| Brand Name : | JULIXING |
| Model Number : | CFZC |
| Certification : | CE and RoHS approval |
| Price : | Contacts us |
| Payment Terms : | T/T, Western Union |
Product Description

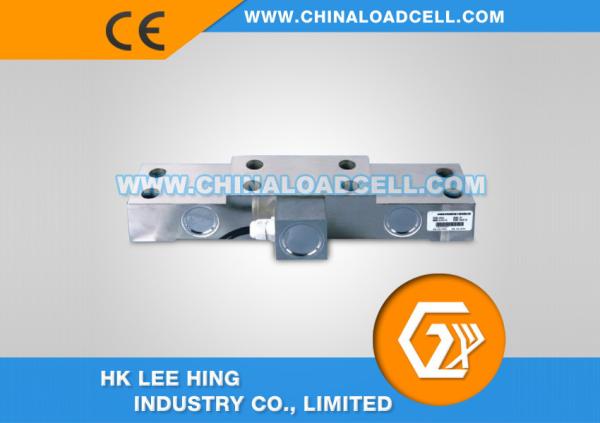

Category: Bearing Load Cell
Range: Min 1.5t; Max 10t.
Application: Hoisting, Water Conservancy and Other Various Industries to Under
The Bearing Seat Tension Testing and Control System.
Dimensions in millimetres
| RANGE | A | B | C | D | L | L1 | L2 | Φ1 |
| 1.5 t | 350 | 310 | 38 | 75 | 152 | 100 | 40 | 17 |
| 2.5 t | 410 | 355 | 50 | 100 | 182 | 130 | 60 | 21 |
| 4 t | 410 | 355 | 50 | 100 | 212 | 160 | 60 | 21 |
| 10 t | 410 | 355 | 50 | 100 | 212 | 160 | 60 | 21 |
| Specification | Unit | Value |
| Output Sensitivity | m V / V | 1.0 ~ 1.5 ± 0.05 |
| Non-linearity | ≤ % F.S | ± 0.1 |
| Hysteresis | ≤ % F.S | ± 0.1 |
| Repeatability | ≤ % F.S | ± 0.05 |
| Creep | ≤ % F.S / 30 min | ± 0.05 |
| Zero Balance | ≤ % F.S | ± 1 |
| Temp Effect on Zero | ≤ % F.S / 10 ℃ | ± 0.05 |
| Temp Effect on Span | ≤ % F.S / 10 ℃ | ± 0.05 |
| Use Temperature | ℃ | -20 ℃ ~ + 80 ℃ |
| Input Resistance | Ω | 750 ± 20 Ω |
| Output Resistance | Ω | 700 ± 5 Ω |
| Safe Overload | ≤ % F.S | 150 % F.S |
| Insulation Resistance | M Ω | ≥ 5000 M Ω ( 50 VDC ) |
| Excitation Voltage | V | 10 V ~ 15 V |
